KaraZajacKAT — Keyfob Analysis Toolkit
A terminal-based RF signal analysis tool for capturing, decoding, and retransmitting automotive keyfob signals. Built in Rust with a real-time TUI powered by ratatui. Protocol decoders are aligned with the ProtoPirate reference.
Supported hardware: KAT uses HackRF One (or compatible) when present for full receive and transmit. For receive-only operation, RTL433 (or any compatible RTL-SDR dongle) is supported: if no HackRF is found, KAT uses the first available RTL-SDR for capture and decode; transmit (Lock/Unlock/Trunk/Panic, Replay) is disabled when using RTL433/RTL-SDR.
Security and legal disclaimer
Use KAT only on systems and vehicles you own or have explicit, written permission to test. Capturing, decoding, or transmitting keyfob and vehicle-access signals without authorization may be illegal in your jurisdiction (e.g. computer misuse, unauthorized access, or radio regulations). You are solely responsible for ensuring your use complies with all applicable laws. KAT is intended for security research, authorized penetration testing, education, and legitimate testing on your own equipment. The authors and contributors assume no liability for misuse or damage arising from use of this software.
Features
- Real-time capture — receive and demodulate AM/OOK keyfob signals at configurable frequencies (HackRF uses AM envelope detection; FM protocols are tagged for display and may decode when signal is strong)
- Multi-protocol decoding — 14 protocol decoders: Kia V0–V6, Ford V0, Fiat V0, Subaru, Suzuki, VAG (VW/Audi/Seat/Skoda), PSA, Scher-Khan, Star Line; adaptive demodulation for real-world conditions
- KeeLoq generic fallback — when a signal doesn’t match any known protocol, KAT tries decoding it as KeeLoq using every manufacturer key in the embedded keystore (Kia V3/V4 and Star Line air formats); successful decodes appear as Keeloq (keystore name) in the capture list
- RF modulation metadata — each protocol tagged as AM, FM, or both (from ProtoPirate); shown in signal detail and exported in .fob
- Rich signal detail — encoding (PWM/Manchester), RF (AM/FM), encryption, serial, counter, key data, CRC, frequency, and raw level/duration pairs
- Signal retransmission — transmit Lock, Unlock, Trunk, and Panic commands from decoded captures, or Replay raw capture (HackRF only; when using RTL-SDR these show “(no TX)” and a receive-only message). VAG supports full encode from capture via stored vag_type/key_idx.
- Export formats —
.fob(versioned JSON with vehicle metadata, signal info, optional raw pairs) and.sub(Flipper Zero compatible) - Import support — load
.fobfiles with automatic v1/v2 format detection - Research mode — config option to show unknown (unidentified) signals in addition to successfully decoded ones
- INI configuration —
~/.config/KAT/config.ini(auto-created with comments on first run): export path, max captures, research_mode, radio defaults, export format - Embedded keystore — manufacturer keys (Kia, VAG, etc.) built in for decoding
- VIM-style command line —
:freq,:lock,:unlock,:save,:load,:delete,:q/:quit, and more - Interactive TUI — captures list with detail panel (protocol, freq, mod, RF, encryption), signal action menu, radio settings, fob export form; header shows device (HackRF / RTL-SDR (RX only) / No device) and status (DISCONNECTED in red when no device)
Requirements
- Radio hardware (one of):
- HackRF One (or compatible) — full receive and transmit
- RTL433 / RTL-SDR — receive-only; no transmit (RTL433 dongles and compatible RTL-SDR hardware)
- Rust 1.75+ (for building from source)
- libhackrf — HackRF C library and headers (required at build time even when using RTL-SDR)
- libusb — for RTL433/RTL-SDR (usually provided by OS)
At runtime, KAT tries HackRF first; if none is found, it uses the first available RTL433/RTL-SDR for receive-only. If neither is connected, it runs without TX/RX support (no live capture); a startup warning offers to continue or you can connect a device and restart.
Installing Dependencies
macOS:
brew install hackrf
# RTL433/RTL-SDR: no extra system lib required; rtl-sdr-rs uses rusb
Debian / Ubuntu:
sudo apt install libhackrf-dev pkg-config libusb-1.0-0-dev
Fedora:
sudo dnf install hackrf-devel pkg-config libusb1-devel
Arch Linux:
sudo pacman -S hackrf libusb
On Linux, if using RTL433/RTL-SDR, you may need to unload DVB-T kernel modules so the device is not claimed by the kernel (see rtl-sdr-rs).
Building
git clone <repo-url> && cd KAT
cargo build --release
The binary is placed at target/release/kat.
Usage
./target/release/kat

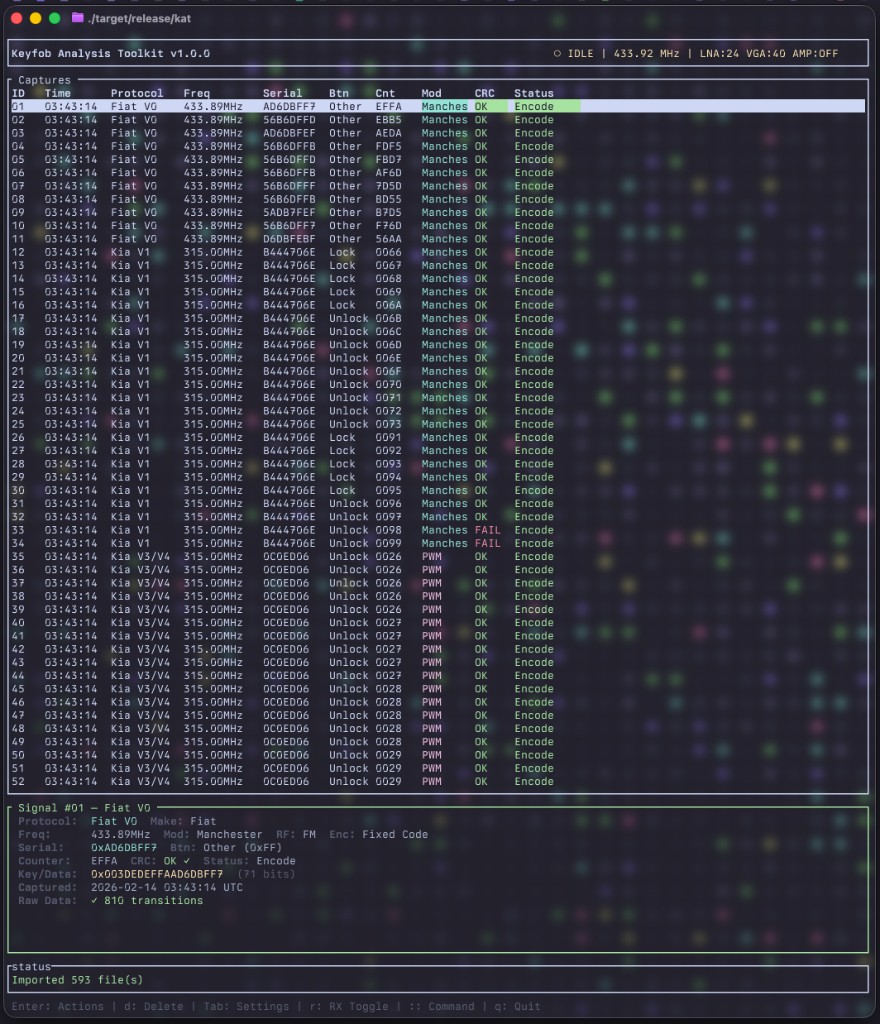

KAT starts in an interactive terminal UI. If no HackRF or RTL433/RTL-SDR is detected, a warning appears (“No HackRF or RTL-SDR detected”) and you can press any key to continue without TX/RX support—you can still view, import, and export captures. The header shows the active device (HackRF, RTL-SDR (RX only) when using RTL433/RTL-SDR, or No device) and radio status; when no device is connected, the status is shown in red (DISCONNECTED). When using RTL433/RTL-SDR, transmit actions (Replay, TX Lock/Unlock/Trunk/Panic) show “(no TX)” in the signal menu and display a receive-only message if selected.
Keyboard Controls
| Key | Action |
|---|---|
j / k or Arrow Up / Down |
Navigate captures list |
Enter |
Open signal action menu on selected capture |
Tab |
Open radio settings menu (Frequency, LNA, VGA, AMP) |
r |
Toggle receive mode (start/stop RX) |
: |
Enter VIM-style command mode |
Esc |
Close menu / cancel current action |
q |
Quit (restores terminal) |
:q or :quit |
Quit from command line (same as q; restores terminal) |
Signal Action Menu
Press Enter on a capture to open the action menu. When using RTL-SDR (receive-only), transmit actions show (no TX) and are disabled.
| Action | Description |
|---|---|
| Replay | Re-transmit raw capture (HackRF only; “no TX” with RTL-SDR) |
| TX Lock | Transmit lock command |
| TX Unlock | Transmit unlock command |
| TX Trunk | Transmit trunk release command |
| TX Panic | Transmit panic alarm command |
| Export .fob | Export signal with full vehicle + signal metadata |
| Export .sub | Export in Flipper Zero SubGHz format |
| Delete | Remove capture from the list |
Fob Export
When exporting to .fob, a metadata form collects filename and optional vehicle info:
- File — output filename (extension added by format)
- Year — vehicle model year
- Make — manufacturer (auto-suggested from protocol)
- Model — vehicle model
- Region — region/market
- Notes — free-form notes
The exported .fob file is a versioned JSON document (v2.0, format kat-fob) containing:
{
"version": "2.0",
"format": "kat-fob",
"signal": {
"protocol": "Kia V3/V4",
"frequency": 433920000,
"frequency_mhz": "433.92MHz",
"modulation": "PWM",
"rf_modulation": "AM/FM",
"encryption": "KeeLoq",
"data_bits": 64,
"data_hex": "...",
"serial": "0x1A2B3C",
"key": "0x...",
"button": 1,
"button_name": "Lock",
"counter": 1234,
"crc_valid": true,
"encoder_capable": true
},
"vehicle": {
"year": 2023,
"make": "Kia",
"model": "Sportage",
"region": "",
"notes": ""
},
"capture": {
"timestamp": "2026-02-07T12:00:00Z",
"raw_pairs": [{"level": true, "duration_us": 400}, {"level": false, "duration_us": 800}]
}
}
rf_modulation is AM, FM, or AM/FM per protocol (from ProtoPirate). Raw pairs are included when config include_raw_pairs is true.
VIM-Style Commands
Transmit commands (:lock, :unlock, :trunk, :panic) require HackRF; with RTL-SDR they report that transmit is not available.
| Command | Description |
|---|---|
:freq <MHz> |
Set receive frequency (e.g. :freq 433.92) |
:lock <ID> |
Transmit lock signal for capture ID |
:unlock <ID> |
Transmit unlock signal for capture ID |
:trunk <ID> |
Transmit trunk release signal |
:panic <ID> |
Transmit panic alarm signal |
:save <ID> |
Save capture to file |
:delete <ID> |
Delete capture from list |
:load <file> |
Import capture from .fob or .sub file |
:q or :quit |
Quit application (terminal restored cleanly, same as pressing q) |
Configuration
On first launch, KAT creates the config directory and a default config file. Captures are in-memory only and are not written to disk unless you export them.
~/.config/KAT/
├── config.ini # Application settings (auto-generated with comments)
└── exports/ # Default export directory for .fob / .sub files
Example config.ini (all keys optional; defaults are used if missing):
[general]
export_directory = ~/.config/KAT/exports
import_directory = ~/.config/KAT/import
max_captures = 100
research_mode = false
[radio]
default_frequency = 433920000
default_lna_gain = 24
default_vga_gain = 20
default_amp = false
[export]
default_format = fob
include_raw_pairs = true
- import_directory — directory scanned at startup for .fob and .sub files to import (default
~/.config/KAT/import). Exports are still saved to export_directory. - research_mode — when
false(default), only successfully decoded signals appear in the list; whentrue, unknown (unidentified) signals are also shown. - include_raw_pairs — when
true, .fob exports include raw level/duration pairs for replay.
Supported Protocols
Protocol behavior and RF modulation (AM/FM) follow the ProtoPirate reference. KAT’s receiver is AM/OOK only; FM protocols may still decode when the signal produces a usable envelope.
| Protocol | Encoding | RF | Encryption | Frequency |
|---|---|---|---|---|
| Kia V0 | PWM | FM | Fixed Code | 433.92 MHz |
| Kia V1 | Manchester | AM | Fixed Code | 315 / 433.92 MHz |
| Kia V2 | Manchester | FM | Fixed Code | 315 / 433.92 MHz |
| Kia V3/V4 | PWM | AM/FM | KeeLoq | 315 / 433.92 MHz |
| Kia V5 | Manchester | FM | Fixed Code | 433.92 MHz |
| Kia V6 | Manchester | FM | Fixed Code | 433.92 MHz |
| Ford V0 | Manchester | FM | Fixed Code | 433.92 MHz |
| Fiat V0 | Manchester | FM | Fixed Code | 433.92 MHz |
| Subaru | PWM | AM | Rolling Code | 433.92 MHz |
| Suzuki | PWM | AM | Rolling Code | 433.92 MHz |
| VAG (VW/Audi/Seat/Skoda) | Manchester | AM | AUT64/XTEA | 433.92 / 434.42 MHz (decode + encode) |
| Scher-Khan | PWM | FM | Magic Code | 433.92 MHz |
| Star Line | PWM | AM | KeeLoq | 433.92 MHz |
| PSA (Peugeot/Citroën) | Manchester | FM | XTEA/XOR | 433.92 MHz |
KeeLoq generic fallback: If no protocol decodes a capture, KAT tries KeeLoq with every keystore manufacturer key (Kia V3/V4 and Star Line bit layouts). On success the protocol is shown as Keeloq (keystore name) (e.g. Keeloq (Alligator), Keeloq (Pandora_PRO)). See docs/keeloq_generic.md.
Cryptographic modules
- KeeLoq — encrypt/decrypt with normal, secure, FAAC, and magic serial/XOR learning key derivation (keeloq_common, keys). Unknown signals are tried as KeeLoq with every keystore key via keeloq_generic (uses keeloq_common only).
- AUT64 — 12-round block cipher for VAG type 1/3/4 (aut64)
- Keystore — manufacturer keys (Kia, VAG, etc.) built in; see
src/keystore/
Demodulator
The AM/OOK demodulator turns IQ samples into level/duration pairs for protocol decoders. FM/2FSK is not demodulated; protocols are tagged AM/FM for display and export.
- Envelope detection — magnitude from I/Q for AM
- Adaptive threshold — transition-based updates to handle varying signal levels
- Exponential moving average — magnitude smoothing
- Schmitt trigger hysteresis — reduces chattering at the decision boundary
- Debounce — 40µs minimum pulse width to reject noise spikes
- Gap detection — 20 ms gap treated as end of signal
IMPORTS folder
The IMPORTS/ directory holds sample .sub captures by manufacturer for testing. If you see desktop.ini files in subfolders (e.g. from Windows), you can delete them; they are ignored by git (see .gitignore).
Project Structure
src/
├── main.rs # Entry point, event loop, key handling
├── app.rs # Application state, radio events, signal actions
├── capture.rs # Capture data (data_extra for protocol encode state), encoding/RF modulation
├── storage.rs # Config (INI), export dir, resolve_config_dir, Storage
├── keystore/
│ ├── mod.rs # Keystore trait and access
│ └── embedded.rs # Embedded manufacturer keys (Kia, VAG, etc.)
├── export/
│ ├── fob.rs # .fob JSON export/import (v1 + v2, rf_modulation)
│ └── flipper.rs # Flipper Zero .sub export
├── protocols/
│ ├── mod.rs # Protocol registry, decoder trait, duration_diff macro
│ ├── common.rs # DecodedSignal (extra for VAG encode), CRC, bit helpers, button codes
│ ├── keeloq_common.rs # KeeLoq cipher + learning key algorithms (used by Kia V3/V4, Star Line, keeloq_generic)
│ ├── keeloq_generic.rs # KeeLoq fallback: try every keystore key when no protocol matches (uses keeloq_common)
│ ├── aut64.rs # AUT64 block cipher (VAG)
│ ├── keys.rs # Key loading (embedded + optional file), KIA/VAG
│ ├── kia_v0..kia_v6.rs
│ ├── ford_v0.rs, fiat_v0.rs, subaru.rs, suzuki.rs
│ ├── vag.rs # VAG decoder/encoder (4 sub-types; encode from capture via extra)
│ ├── scher_khan.rs, star_line.rs, psa.rs
│ └── ...
├── radio/
│ ├── hackrf.rs # HackRF device control (RX/TX)
│ ├── rtlsdr.rs # RTL-SDR device control (RX only)
│ ├── demodulator.rs # AM/OOK demodulator (IQ -> level/duration)
│ └── modulator.rs # Level/duration -> TX waveform
└── ui/
├── layout.rs # TUI layout, fob metadata form
├── captures_list.rs # Captures table + detail (protocol, mod, RF, enc)
├── signal_menu.rs # Signal action menu
├── settings_menu.rs # Radio settings (Freq, LNA, VGA, AMP)
├── command.rs # VIM-style command line
└── status_bar.rs # Status bar
Credits
KAT is developed by Kara Zajac (.leviathan). KAT would not be possible without ProtoPirate—the protocol decoders, reference implementations, and community work are the foundation this tool is built on. Truly standing on the shoulders of giants.
ProtoPirate Development Team
RocketGod, MMX, Leeroy, gullradriel, Skorp (thanks for the Weather App inspiration!), Vadim's Radio Driver.
Protocol Magic
L0rdDiakon, YougZ, RocketGod, MMX, DoobTheGoober, Skorp, Slackware, Trikk, Wootini, Li0ard, Leeroy.
Reverse Engineering Support
DoobTheGoober, MMX, NeedNotApply, RocketGod, Slackware, Trikk, Li0ard.
