GigLez — Wigle for Sub-GHz IoT

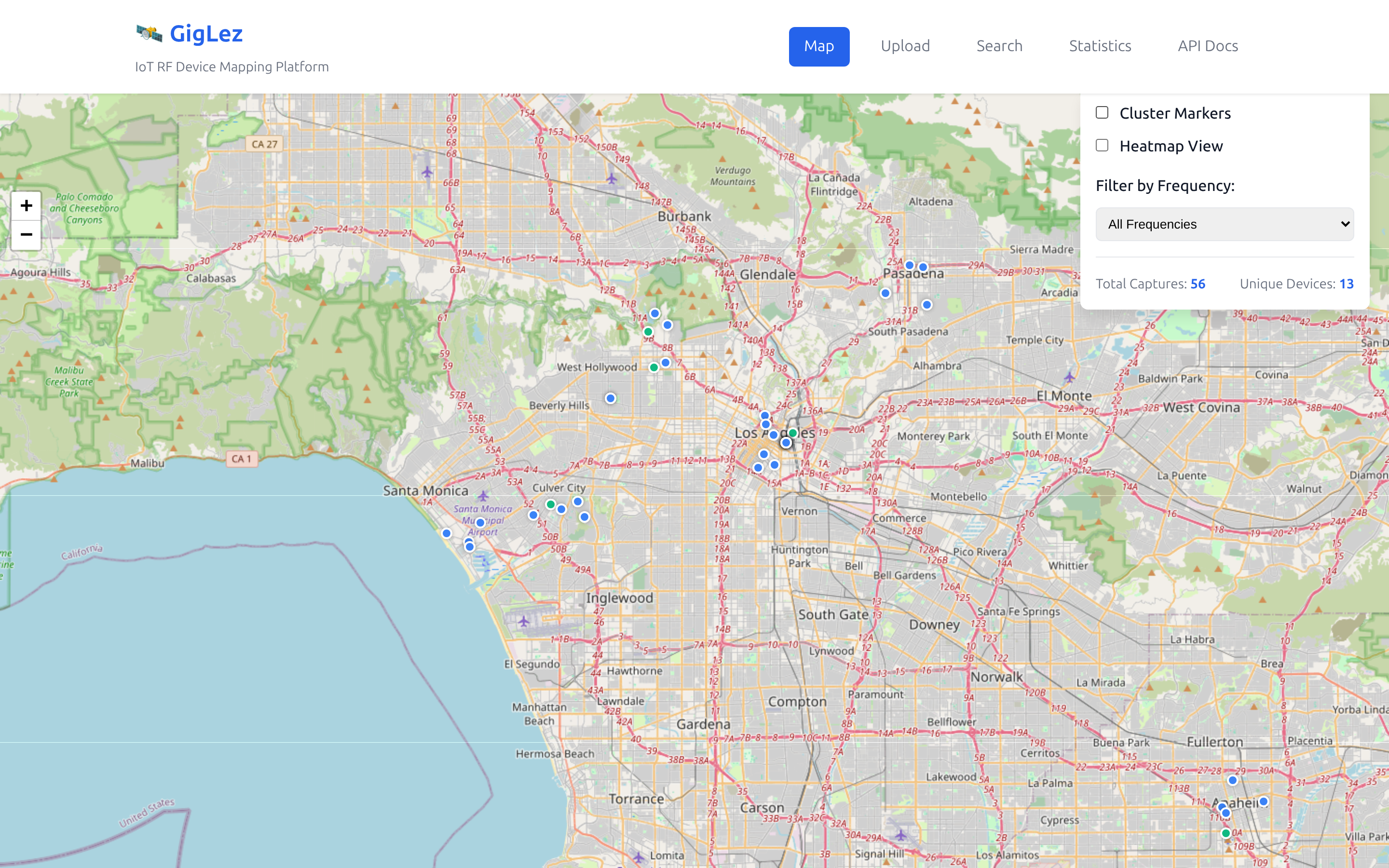

A crowdsourced map of Sub-GHz RF devices. Upload a Flipper Zero .sub capture with GPS, GigLez parses the signal, identifies the device by protocol signature, and pins it on an interactive map — building an open dataset of the 300–928 MHz IoT world (garage doors, doorbells, weather sensors, TPMS, remotes, and more).

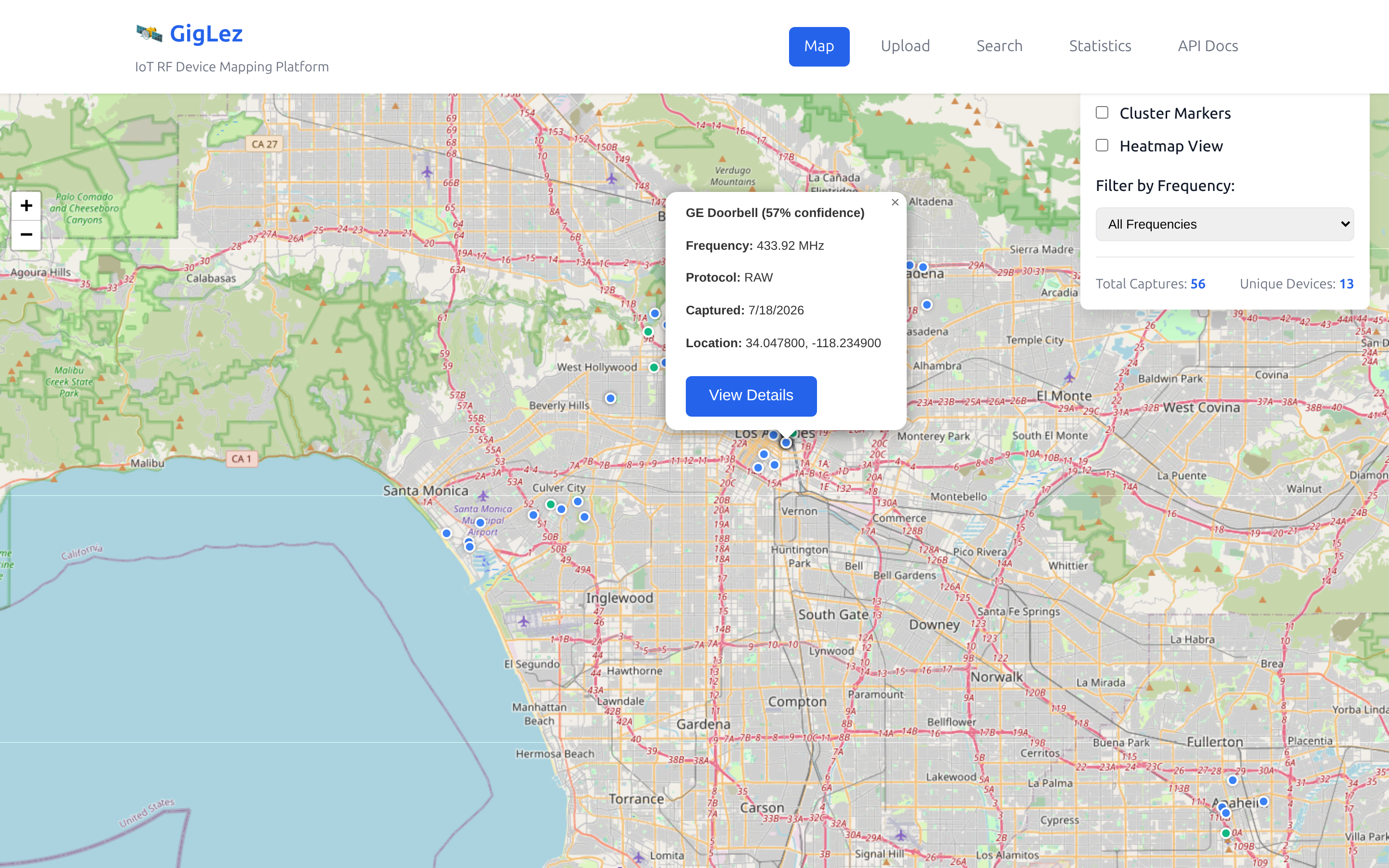

Click any marker to see the automatically-identified device and match confidence:

---

Why

Wigle.net mapped the WiFi/Bluetooth/cellular world. Almost nobody has done the same for Sub-GHz RF — the unlicensed ISM bands where garage remotes, alarm sensors, tire-pressure monitors and cheap IoT gadgets chatter. GigLez collects those captures from any device (Flipper Zero, LilyGo, RTL-SDR, HackRF — anything that emits .sub), identifies them, and turns the aggregate into a labeled dataset for RF SIGINT research and ML training.

How it works

flowchart LR
    A[".sub capture<br/>+ GPS"] --> B["Parser<br/>freq · preset · timing"]
    B --> C["Category Router<br/>band + timing-ratio + pulse-count"]
    C --> D["Protocol DB match<br/>+ confidence calibration"]
    D --> E["GPS resolve<br/>filename / manifest"]
    E --> F["Store"]
    F --> G["Leaflet map"]
    F --> H["Dataset export<br/>jsonl · csv · geojson"]

The identifier first routes a capture to a device category using frequency band, pulse timing ratios and pulse counts, then scores it only against protocols in that category and calibrates the confidence (spread + category-mismatch penalties). This routing step is what lifts identification accuracy over naive whole-database matching.

Features

• Device-agnostic upload — drag-and-drop .sub files; GPS from the filename or a manifest
• Automatic identification — category routing → protocol-signature matching → confidence score
• Interactive map — Leaflet with marker clustering, frequency-band color coding, and a heatmap view
• Search & filter — by frequency, protocol, and geographic radius/bounding box
• Dataset export — stream the labeled corpus as JSONL, CSV, or GeoJSON for ML training
• Stats dashboard — total captures, unique devices, geographic coverage

Quick start

# install deps into a venv
python3 -m venv venv && source venv/bin/activate
pip install -r requirements.txt

# run the app (simple mode — JSON-backed, no database required)
./start_web.sh
# or explicitly:
python3 -m uvicorn src.api.main_simple:app --host 0.0.0.0 --port 8000 --reload

Then open http://localhost:8000 for the map UI (/docs for the OpenAPI reference).

Modes. main_simple.py is the live app and needs no database — captures persist to a local JSON store, which is the fastest way to try GigLez. A full SQLAlchemy ORM path (PostgreSQL + PostGIS in production, SQLite in dev via DATABASE_URL=sqlite:///./giglez.db) also exists for scaled deployments.

API

Method	Endpoint	Purpose
POST	/api/v1/captures/upload	Upload .sub files + GPS manifest
GET	/api/v1/query/captures	List stored captures
GET	/api/v1/captures/{id}	Capture detail
GET	/api/v1/stats/summary	Platform statistics
GET	/api/v1/export?format=jsonl|csv|geojson	Export the labeled dataset
GET	/health	Health check

Supported formats

Flipper Zero .sub — both decoded key files (Protocol / Bit / Key) and RAW pulse captures (RAW_Data timing arrays). .fff and PCAP ingest are on the roadmap.

Accuracy status

Identification is at Phase 0 — category routing plus a calibrated confidence model. The current gate benchmark (scripts/benchmark_phase0.py) reports ~67% top-3 category accuracy, but note this runs on synthetic .sub files generated from the protocol database itself, so treat it as an upper bound, not a real-world number. Real-world validation against field Flipper captures, and a hybrid heuristic + 1D-CNN ML ensemble, are the next milestones.

Tech stack

Python · FastAPI · Leaflet.js · SQLAlchemy (PostgreSQL/PostGIS · SQLite) · Flipper .sub parsing

Roadmap

• .sub parser + GPS validation
• Category-routed device identification (Phase 0)
• Web UI (map / upload / search / stats) + dataset export
• Real-world accuracy validation on field captures
• ML ensemble (heuristic + 1D CNN on raw pulses + statistical features)
• Community verification, accounts, leaderboard
• Docker deployment; 2.4/5 GHz (PCAP + OUI) as a later phase
