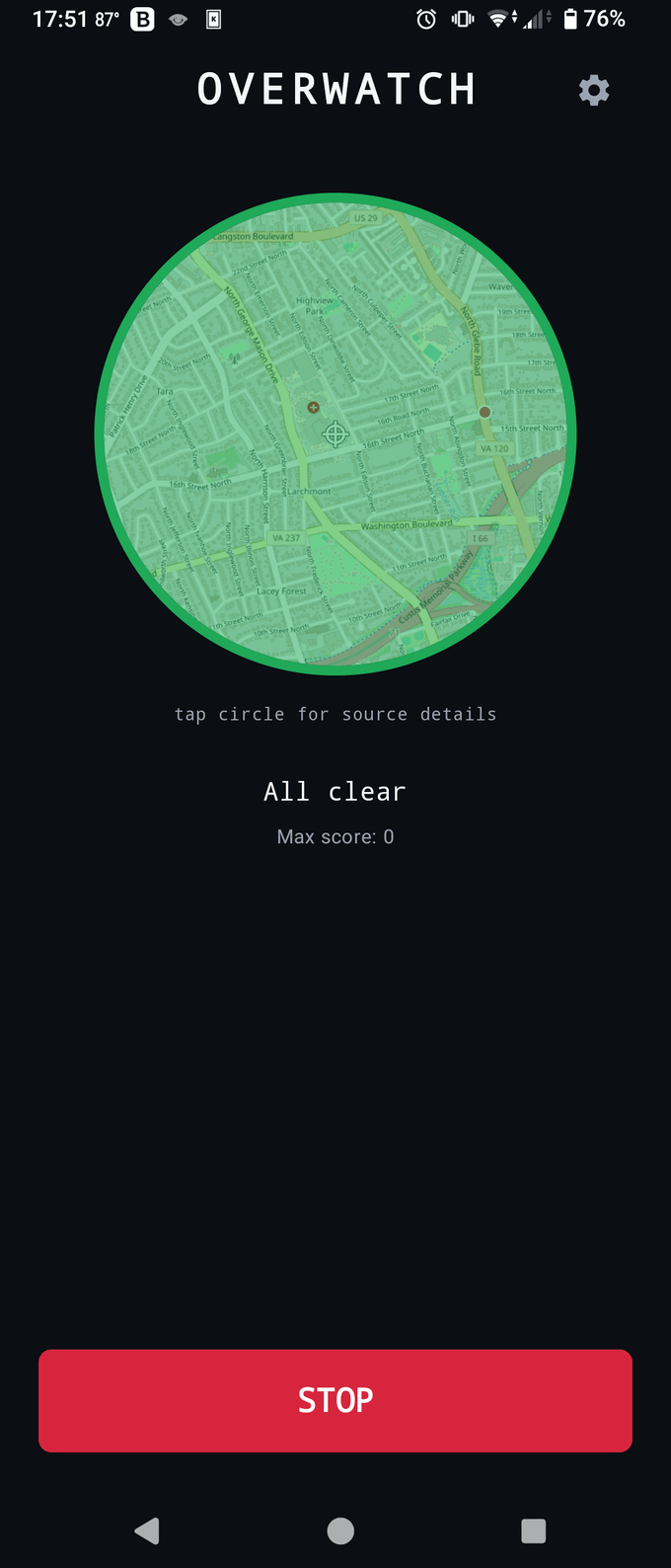

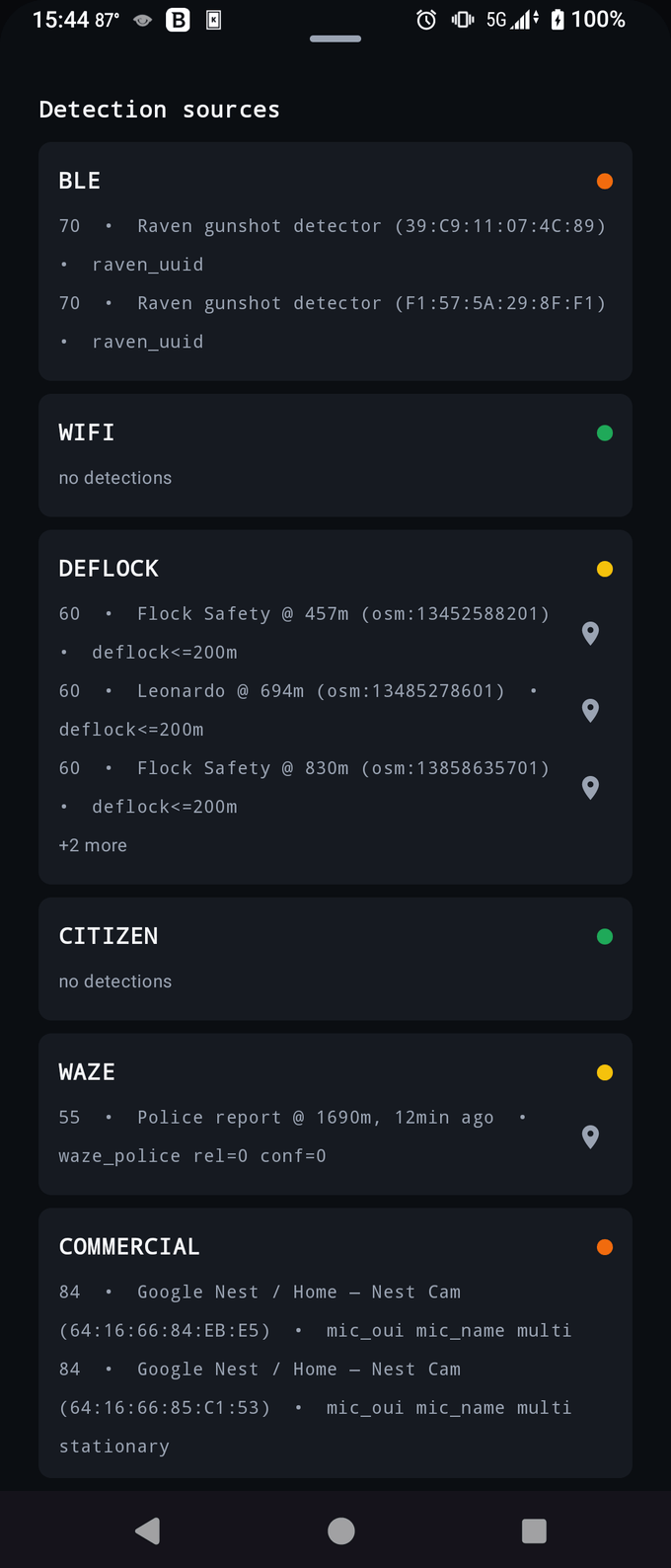

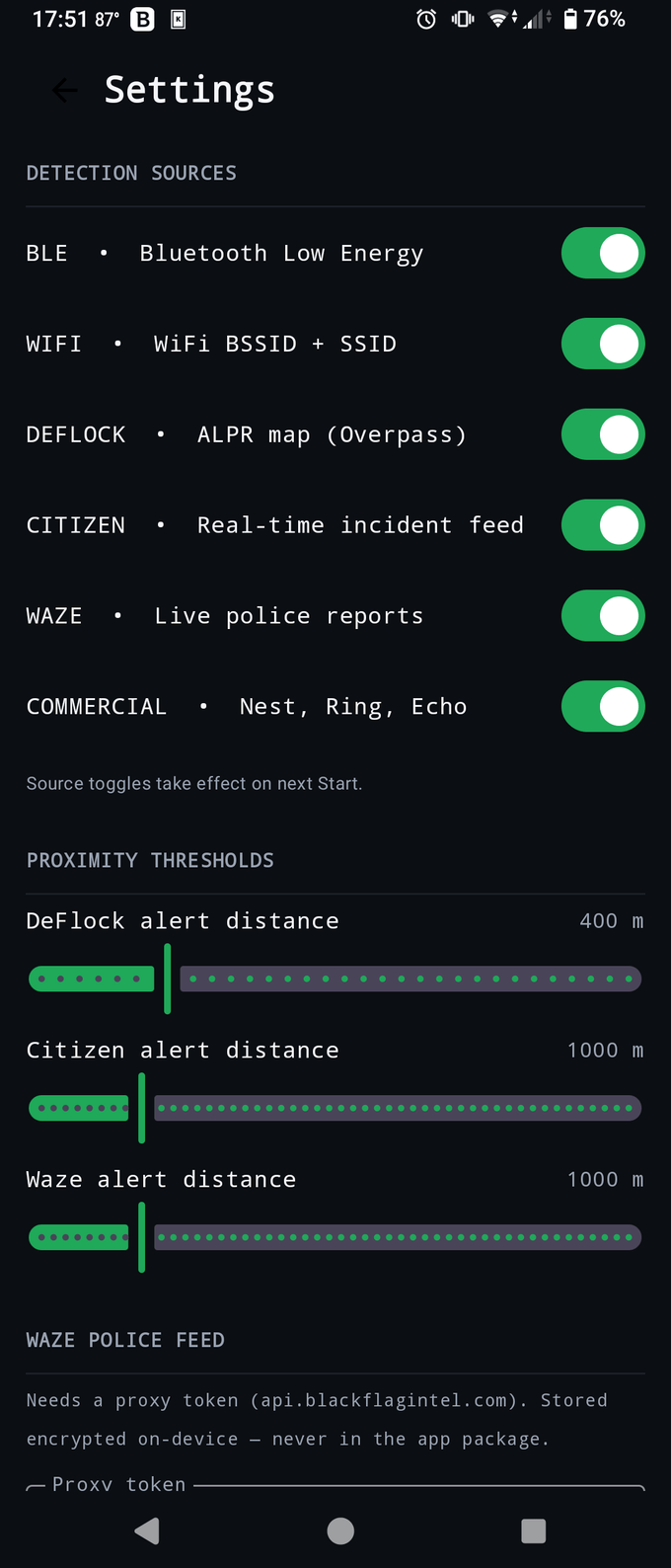

Live threat-map circle · source drill-down · settings
--- ## What it detects | Source | What it looks at | Where it comes from | |---|---|---| | **BLE** | Bluetooth-LE advertisements: vendor MAC OUIs (Axon, Flock Penguin / Raven, XUNTONG mfg id `0x09C8`, "TN" serial pattern), Raven service UUIDs, device-name patterns | Local radio scan (BLE callback API). Iterates every manufacturer-specific data entry to find XUNTONG, not just the first. | | **WiFi** | BSSID OUI prefixes for Flock infrastructure (31-prefix superset), `Flock-XXXX` and other generic SSID patterns | `WifiManager.getScanResults()` polled every 35 s (just under the Android 11+ 4-scans/2-min throttle) | | **DEFLOCK** | Crowdsourced ALPR locations within configurable proximity (default 200 m) | POST to Overpass API (`overpass.deflock.org` → fallback `overpass-api.de`) for `man_made=surveillance + surveillance:type=ALPR` in a 5 km bbox; 24 h on-disk cache by 0.05° grid cell. Refetches when the user moves > 1.5 km from the last fetch center. Backoffs after Overpass failures; treats `{"remark": "...timed out..."}` 200-responses as failure so timeouts don't poison the cache. | | **CITIZEN** | Real-time public-safety incidents (police-relevant only — fire/medical-only events filtered out) within configurable proximity, < 30 min old | `citizen.com/api/incident/trending` (bbox) polled every 60 s, then per-incident detail via `/api/incident/{id}` with an in-memory cache so each incident is fetched once per session. First poll fires immediately on the first location fix. | | **WAZE** | User-reported `POLICE` alerts still active in the feed within configurable proximity (default 500 m), up to ~45 min old | `api.blackflagintel.com/waze/alerts-and-jams` — the OVERWATCH proxy (Caddy) that injects the OpenWeb Ninja key server-side and forwards to their hosted Waze scrape, sidestepping the reCAPTCHA gating that 403s direct `live-map/api/georss` calls. The app authenticates with an `X-App-Token` entered in Settings (encrypted on-device); the paid key never ships in the APK. Polled every ~4 min. Upstream ignores type filtering and caps at 200 alerts, so the client pulls the full page and filters to `POLICE` itself. Alerts carry confidence (0–5) + reliability (0–10); high values nudge the score up. No token → source shows "not configured" in the drill-down. | | **COMMERCIAL** | Nearby consumer smart-home / voice gear (Nest, Ring, Echo, hidden cams) and camera-bearing smart glasses (Meta, Snap, Vuzix) as a secondary situational signal | Rides the BLE + WiFi scans — OUI / device-name / service-UUID / SSID matches plus Bluetooth SIG company IDs from `MicTargets`. Score-capped at ORANGE so a cluster of doorbells (or a passing pair of Ray-Bans) never reads as ALPR-grade certainty. | > **Waze is back (v0.4.0+), via a key-protected proxy.** Waze reCAPTCHA-gated its `live-map/api/georss` endpoint in 2025/2026 — automated calls get HTTP 403 regardless of IP or headless-vs-headful browser (it scores browser *reputation*, verified by direct testing), which is why v0.1.5 removed the original integration and why no free scraper survives. OVERWATCH reads Waze POLICE alerts through [OpenWeb Ninja](https://www.openwebninja.com)'s hosted feed (pay-as-you-go ~$0.005/req, ≈ $1–3/mo at the 4-min poll). To keep the paid key off every device, the app doesn't hold it: a Caddy reverse proxy at `api.blackflagintel.com` injects the key server-side, and the app authenticates with a scoped, revocable `X-App-Token` entered in Settings (stored encrypted via the Android Keystore). The Waze for Cities partner feed was ruled out — it excludes POLICE and is agency-only. Waze complements Citizen: denser for roadway stops / speed traps. Every observation is scored 0–100 by `ConfidenceEngine`. The on-screen tier is the maximum live score across all sources: ``` GREEN < 40 nothing credible YELLOW 40 – 69 single weak indicator ORANGE 70 – 84 high confidence RED 85 + certain ``` The user-facing circle uses the full 4-tier mapping. Cross-source corroboration naturally pushes the global max upward (a BLE OUI hit *and* a DeFlock map match in the same area produce a higher tier than either alone). When idle, the circle shows muted gray with `IDLE` text so it's distinguishable at a glance from "scanning, all clear." While scanning, the circle becomes a live OpenStreetMap centered on you, wrapped in a **threat-color ring** (the current tier at a glance) and marked with a ⌖ crosshair for your position. Map geodata is color-coded by source — **Flock / DeFlock cameras red, Waze police blue, Citizen incidents purple** — so each dot is self-explanatory. The same map renders in a smaller floating overlay bubble (Settings → Display over other apps) so it works over other apps. --- ## How alerts work - **In-app**: the threat circle shows a live map with a threat-color ring and source-color dots while scanning; tap it to open the bottom-sheet drill-down with per-source rows. DeFlock, Citizen, and Waze events carry coordinates — each row has a tap-to-open Maps icon. - **Foreground notification**: rebuilt on every threat-tier change. Title becomes `OVERWATCH • RED` (or whatever tier); text shows the top detection's score + label. Notification priority bumps to HIGH on RED so the system can surface it as a heads-up. - **Vibration**: on upward tier transitions only. Short pulse for YELLOW, double for ORANGE, escalating triple for RED. Toggle in Settings → Alerts. - **Per-source health**: the drill-down sheet shows orange `Source unreachable` text on a row when its scanner couldn't reach its data source — silent empty results vs. real failures are distinguishable. --- ## Architecture ``` ui/MainScreen.kt map circle + threat ring + START/STOP + drill-down sheet ui/OverlayBubble.kt floating "chat-bubble" version of the map circle ui/MarkerIcons.kt map marker drawables — source dots + ⌖ user crosshair ui/SettingsScreen.kt source toggles, distance sliders, Waze token, vibrate, theme ui/theme/Theme.kt Material 3 dark/light + threat colors service/DetectionService.kt foreground service — owns scanners, notification, vibration service/OverlayManager.kt WindowManager host for the floating overlay bubble scan/BleScanner.kt BLE callback scanner scan/WifiScanner.kt WifiManager poller + SCAN_RESULTS receiver scan/DeflockClient.kt Overpass POST (deflock.org → overpass-api.de) + 24h cache scan/DeflockScanner.kt location-driven proximity check + failure backoff scan/CitizenClient.kt GET /api/incident/trending + /api/incident/{id} scan/CitizenScanner.kt 60 s poller, fire/medical filter, per-id cache scan/WazeClient.kt GET api.blackflagintel.com proxy (X-App-Token) → OpenWeb Ninja scan/WazeScanner.kt ~4 min poller, 200-alert page, client-side POLICE filter fusion/ConfidenceEngine.kt scoring (BLE / WiFi / DeFlock / Citizen / Waze / Commercial) fusion/RssiTracker.kt rise-peak-fall stationary-signal detector fusion/DetectionStore.kt in-memory dedup, 5-min retention, max-tier flow fusion/SourceHealth.kt per-source OK/FAILED registry for the drill-down fusion/ThreatLevel.kt 4-tier enum + DetectionSource enum data/location/LocationProvider.kt FusedLocationProviderClient wrapper data/settings/Settings.kt SharedPreferences-backed StateFlow settings data/settings/SecureStore.kt Keystore AES/GCM store for the Waze proxy token data/targets/ BleOuis, WifiOuis, RavenUuids, Patterns, Manufacturers, MicTargets ``` No detection-history database. All state is in-memory and clears on stop, by design. Service uses `START_NOT_STICKY` — system kill doesn't auto-restart into a stuck state. --- ## Build & install Requires: - **JDK 17** (17 or 21; Android Gradle Plugin 8.7.x rejects JDK 26) - **Android Studio** with SDK Platform 35 + Build-Tools 35.x + Platform-Tools ```sh # 1) Copy the example local.properties and point sdk.dir at your install cp local.properties.example local.properties # edit local.properties → sdk.dir=/Users/
